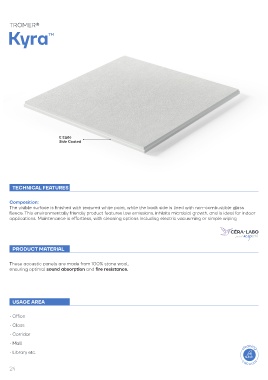

Page 24 - Tromer | Online Catalog 2025 (EN)

www.tromer.com.tr

TROMER® EDGE MODULE SIZE (mm) EDGE MODULE SIZE (mm)
Kyra ™ A15 1200 x 600 x 15 E15 1200 x 600 x 15
600 x 600 x 15
600 x 600 x 15

600 x 600 x 15 600 x 600 x 15
A24 E24
1200 x 600 x 15 1200 x 600 x 15

Essential Characteristic Performance Harmonized Techncal Spec.

Reaction to fire to Class +A1

Emission of hazardous substances Mineral stone wool does not provide
for indoor environments (ZA) nutrients for microorganisms.

Environmental Impact Recyclable Material
E Egde TS EN 13964:2014
Side Coated
Sound Absorption aw: 0.95

Moisture and Sagging Resistance Provides protection in high humidity

Light Reflection 86%
TECHNICAL FEATURES
Thermal Conductivity (EN 12667) Max.0,035 W/Mk TS EN 12086
Composition:
The visible surface is finished with textured white paint, while the back side is lined with non-combustible glass
fleece. This environmentally friendly product features low emissions, inhibits microbial growth, and is ideal for indoor Cleanroom compatibility Class:ISO 4(≥0,5 μm) ISO 14644-1
applications. Maintenance is effortless, with cleaning options including electric vacuuming or simple wiping
* All measurements have been made according to 15mm.

SOUND ABSORPTION PRODUCT TEXTURE

PRODUCT MATERIAL Sound Absorption Class
α : 0.95 (Class A)
w
These acoustic panels are made from 100% stone wool,
ensuring optimal sound absorption and fire resistance. 1.0
0.9
0.8
0.7
0.6
0.5
USAGE AREA 0.4
0.3
• Office 0.2
0.1
• Class 0.0

• Corridor 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz
• Mall
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz α w Absorption Class NRC
• Library etc.
A: 15/200 0.50 0.85 1.00 0.90 0.98 0.95 0.95 A 0.90

24 25
