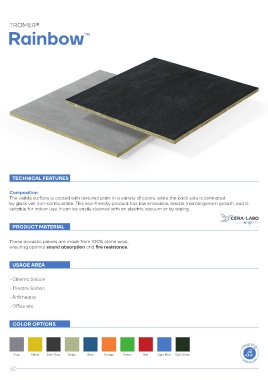

Page 30 - Tromer | Online Catalog 2025 (EN)

www.tromer.com.tr

TROMER® EDGE MODULE SIZE (mm) EDGE MODULE SIZE (mm)
Rainbow ™ 600 x 600 x 15 600 x 600 x 15

A15
1200 x 600 x 15 E15 1200 x 600 x 15

600 x 600 x 15 600 x 600 x 15
A24 E24
1200 x 600 x 15 1200 x 600 x 15

Essential Characteristic Performance Harmonized Techncal Spec.

Reaction to fire to Class +A1

Emission of hazardous substances Mineral stone wool does not provide
for indoor environments (ZA) nutrients for microorganisms.

Environmental Impact Recyclable Material

TS EN 13964:2014
Sound Absorption aw: 0.95

Moisture and Sagging Resistance Provides protection in high humidity

TECHNICAL FEATURES
Light Reflection Changeable
Composition:
The visible surface is coated with textured paint in a variety of colors, while the back side is laminated Thermal Conductivity (EN 12667) Max.0,035 W/Mk TS EN 12086
by glass veil non-combustible. This eco-friendly product has low emissions, resists microorganism growth, and is
suitable for indoor use. It can be easily cleaned with an electric vacuum or by wiping.
Cleanroom compatibility Class:ISO 4(≥0,5 μm) ISO 14644-1

PRODUCT MATERIAL * All measurements have been made according to 15mm.

These acoustic panels are made from 100% stone wool, SOUND ABSORPTION PRODUCT TEXTURE
ensuring optimal sound absorption and fire resistance.
Sound Absorption Class
α : 0.95 (Class A)
w
USAGE AREA
1.0
• Cinema Saloon 0.9
0.8
• Theatre Saloon 0.7
• Anfitheatre 0.6
0.5
• Office etc. 0.4
0.3
0.2
COLOR OPTIONS 0.1
GRAY BLACK
0.0
125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz

125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz α w Absorption Class NRC
Gray Yellow Dark Gray Beige Blue Orange Green Red Light Blue Dark Green
A: 15/200 0.50 0.85 0.95 0.85 1.00 0.95 0.95 A 0.90
30 31
